Plan2Map
A Multimodal Benchmark for Document-Grounded Geospatial Boundary Reconstruction from Planning Records

2026

Fabian Degen* 1, Oishi Deb* 1, Jindong Gu2, Junchi Yu1, Samuele Marro1, Philip Torr1, Jialin Yu† 1

* Equal Contribution  ·  † Corresponding Author
1University of Oxford  ·  2Google DeepMind

fabian.degen@tuta.com; oishideb@robots.ox.ac.uk; yu.jialin@outlook.com

Paper Code Dataset · Coming Soon BibTeX

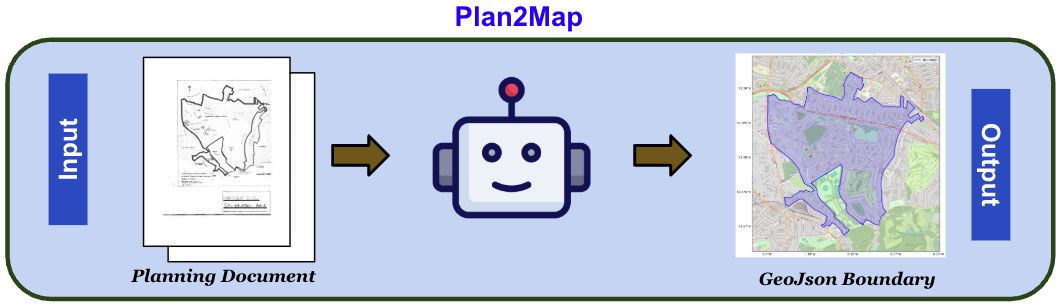

Plan2Map overview

We introduce Plan2Map, a 208-case multimodal benchmark for document-grounded geospatial boundary reconstruction from UK planning records. Given only a source planning document, a system must reconstruct a valid geospatial boundary from notice text, schedules, map plates, map labels, and boundary annotations; the reference GeoJSON is held out for scoring.

Motivation

Planning records often answer a spatial question: which area is subject to a particular rule? For UK Article 4 Directions, the affected area is typically described through a legal notice and an accompanying map rather than provided as machine-readable geometry. Digital planning systems, however, need such geometry to check whether a site falls inside an affected area, compare restrictions, and audit records over time.

The source documents usually provide only indirect spatial evidence: notice text, legal schedules, scanned or embedded map plates, map labels, coloured or hatched regions, and boundary annotations. Recovering the boundary is therefore not simply field extraction, but reconstruction of a structured spatial object from distributed textual, visual, and geographic evidence.

The Plan2Map Benchmark

Plan2Map contains 208 manually reviewed UK Article 4 Direction records, spanning 1958–2025 and covering 29 local planning authorities across England. Each released case bundles three artefacts:

  • The source planning PDF — text, schedules, maps, labels, and boundary annotations.
  • A verified reference GeoJSON (Polygon or MultiPolygon), held out as the evaluation reference.
  • A rendered location-map PNG overlaying the reference geometry on an OpenStreetMap basemap.

Cases span scanned and born-digital documents, varied map quality, and boundaries ranging from simple parcels to irregular or multi-part geometries. Metadata covers local authority, site description, document quality (✅ Good / ⚠️ Bad), document colour (📄 White / 📜 Yellow), boundary shape, and shape complexity (🟢 Easy / 🟡 Medium / 🔴 Hard).

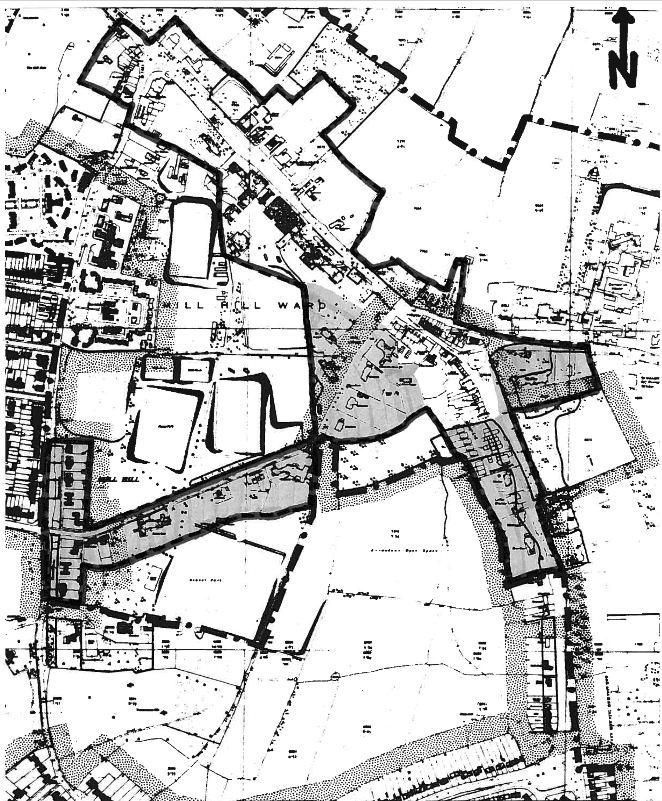

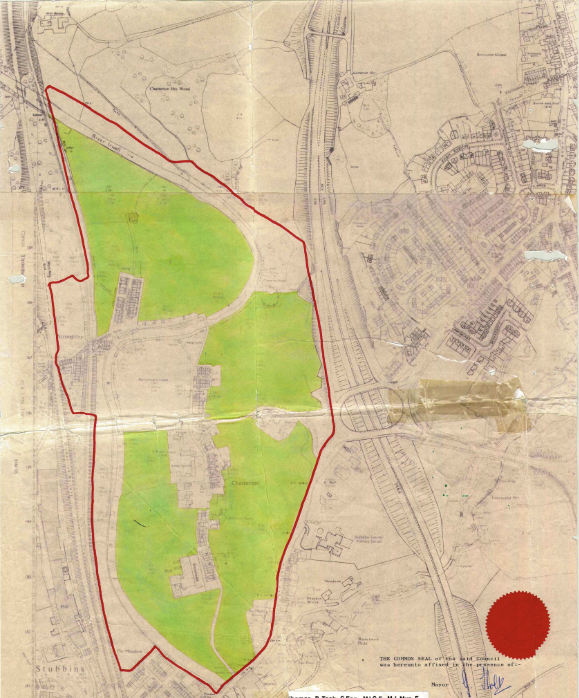

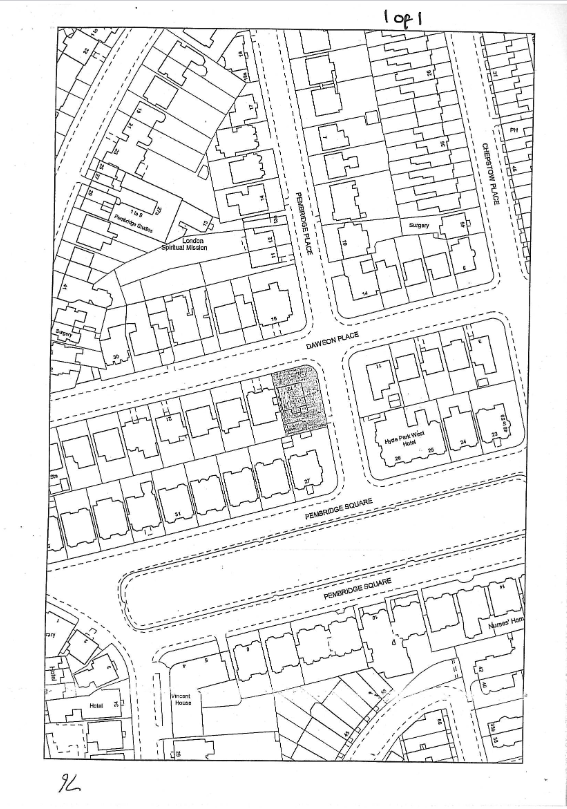

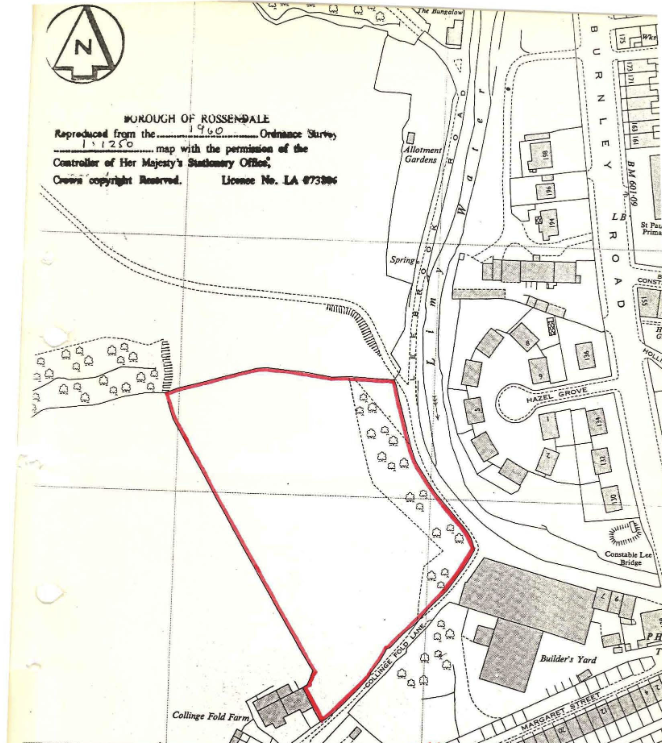

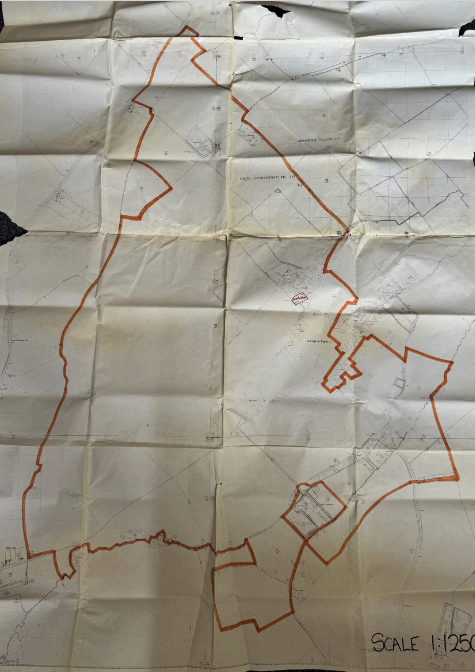

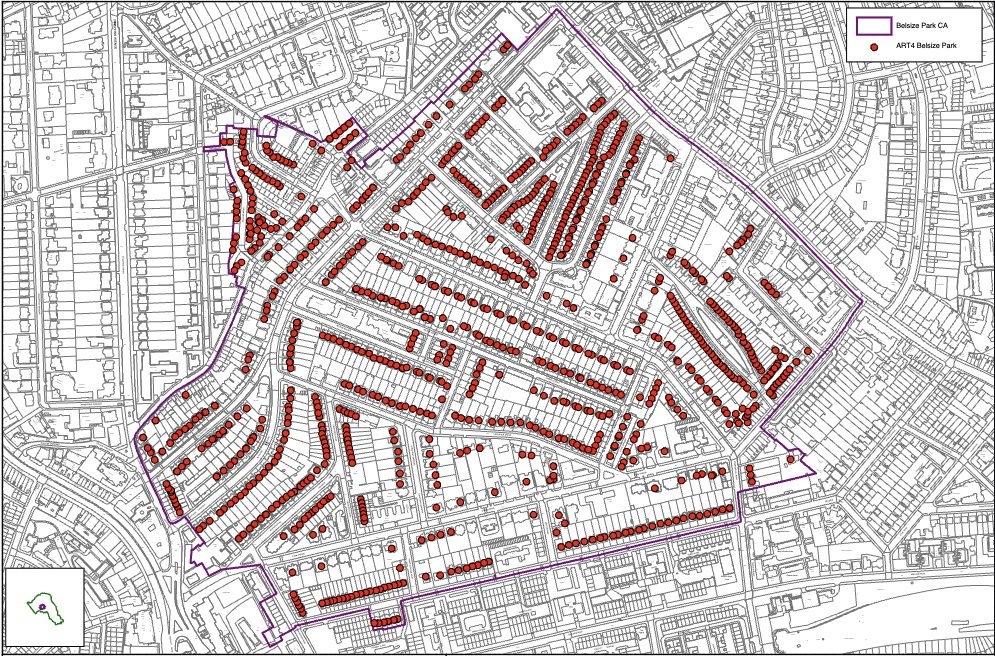

Examples from the Dataset

Representative cases across the 3 × 2 × 2 strata (shape complexity × document colour × quality). Auto-advances every 4 seconds — hover to pause.

GeoPlanAgent

We propose GeoPlanAgent, a document-grounded, geospatial-tool-in-the-loop system that decomposes the task into evidence extraction, localisation, map registration, boundary segmentation, projection, and verification. Rather than asking a multimodal model to generate a geospatial polygon in one pass, GeoPlanAgent mirrors the task structure with specialised components.

Pipeline

  1. Reader — single multimodal LLM call that converts the raw PDF into a typed record of spatial evidence (postcodes, grid references, addresses, road and place names, map labels, printed scale, page-level metadata).
  2. Worker — produces the final GeoJSON via a tool-calling loop:
    1. Locate sub-agent — queries an OS Open Names gazetteer to return an approximate map centre with an uncertainty radius σ.
    2. Map-tile matching — aligns the planning map against OS Open Zoomstack tiles using MINIMA-LoFTR + RANSAC.
    3. Boundary segmentation — SAM 3 with LoRA adapters, fine-tuned on planning maps with style-transfer augmentation.
    4. Projection — projects the mask into WGS84 via the recovered affine transform.
  3. Critic (optional) — independent LLM that reviews the top-3 candidates post-commit and may approve, switch, or request re-localisation.

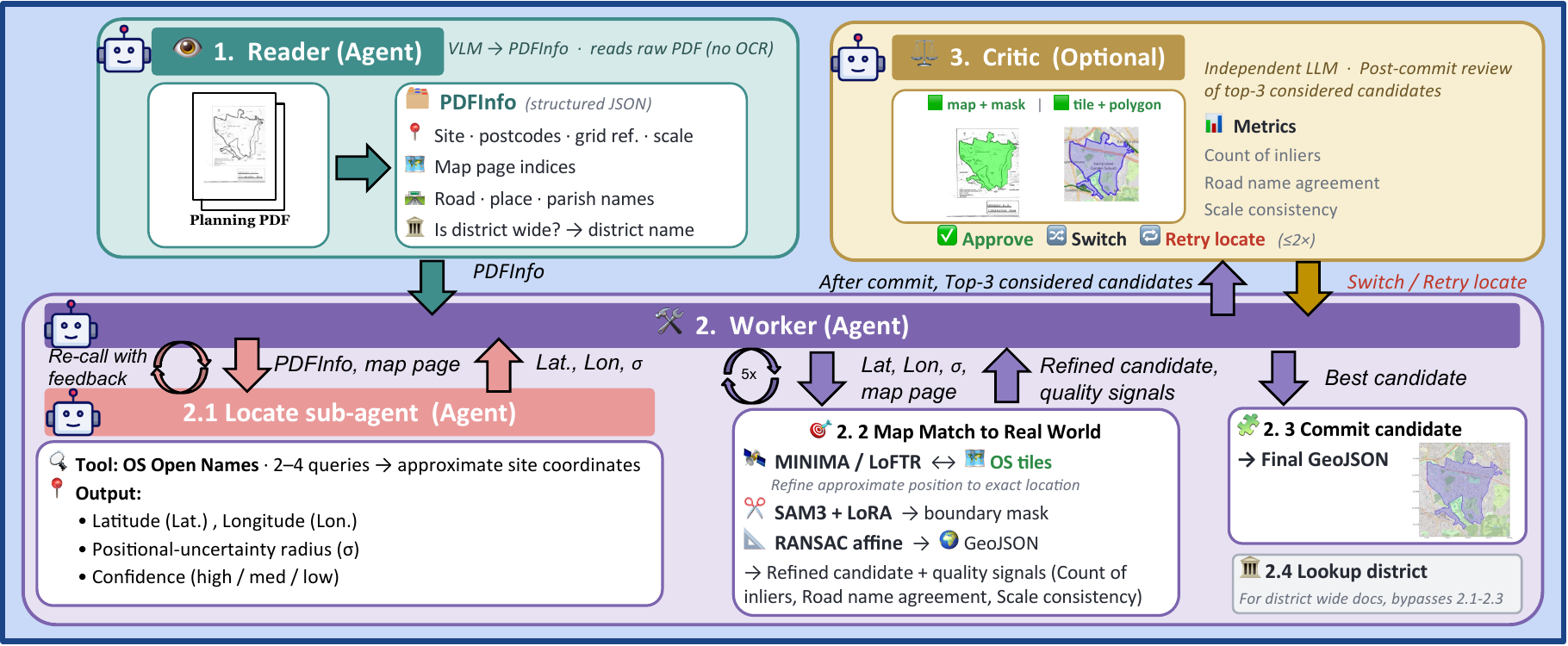

GeoPlanAgent workflow diagram

GeoPlanAgent workflow.

Explore the pipeline

Click any stage of the pipeline to expand it and look at the inputs and outputs of that step. The Map registration page opens an interactive animation showing how MINIMA-LoFTR is used to refine the initial location from the Locate sub-agent.

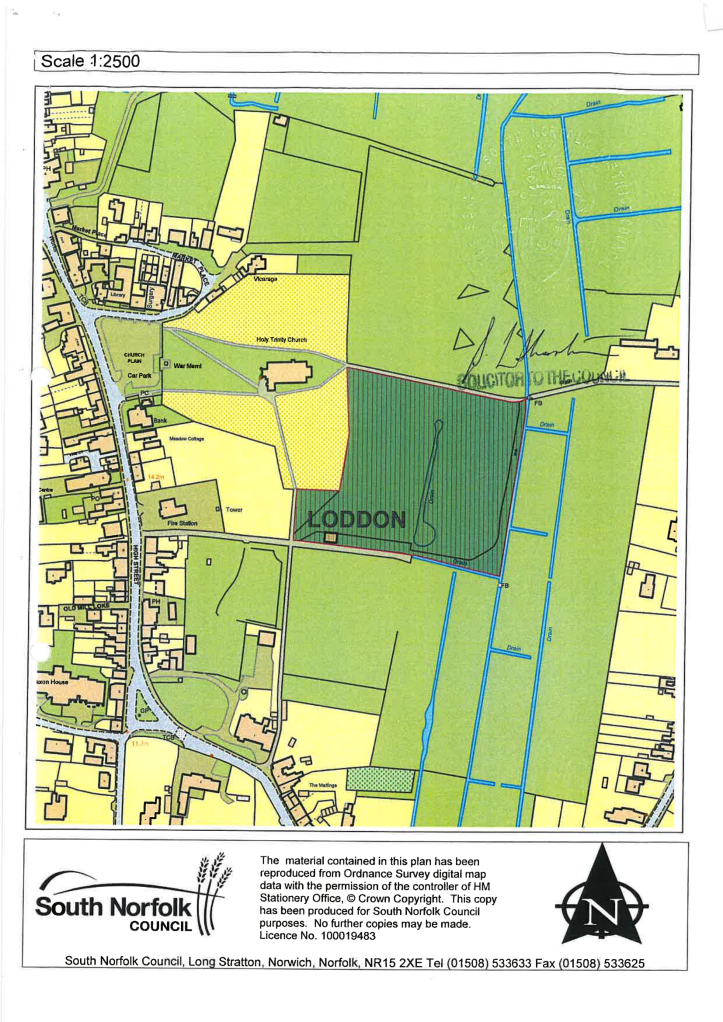

Planning map (case 12:00116:ART4)
Planning map of Loddon, Norfolk, resized to match OS tile pixel scale

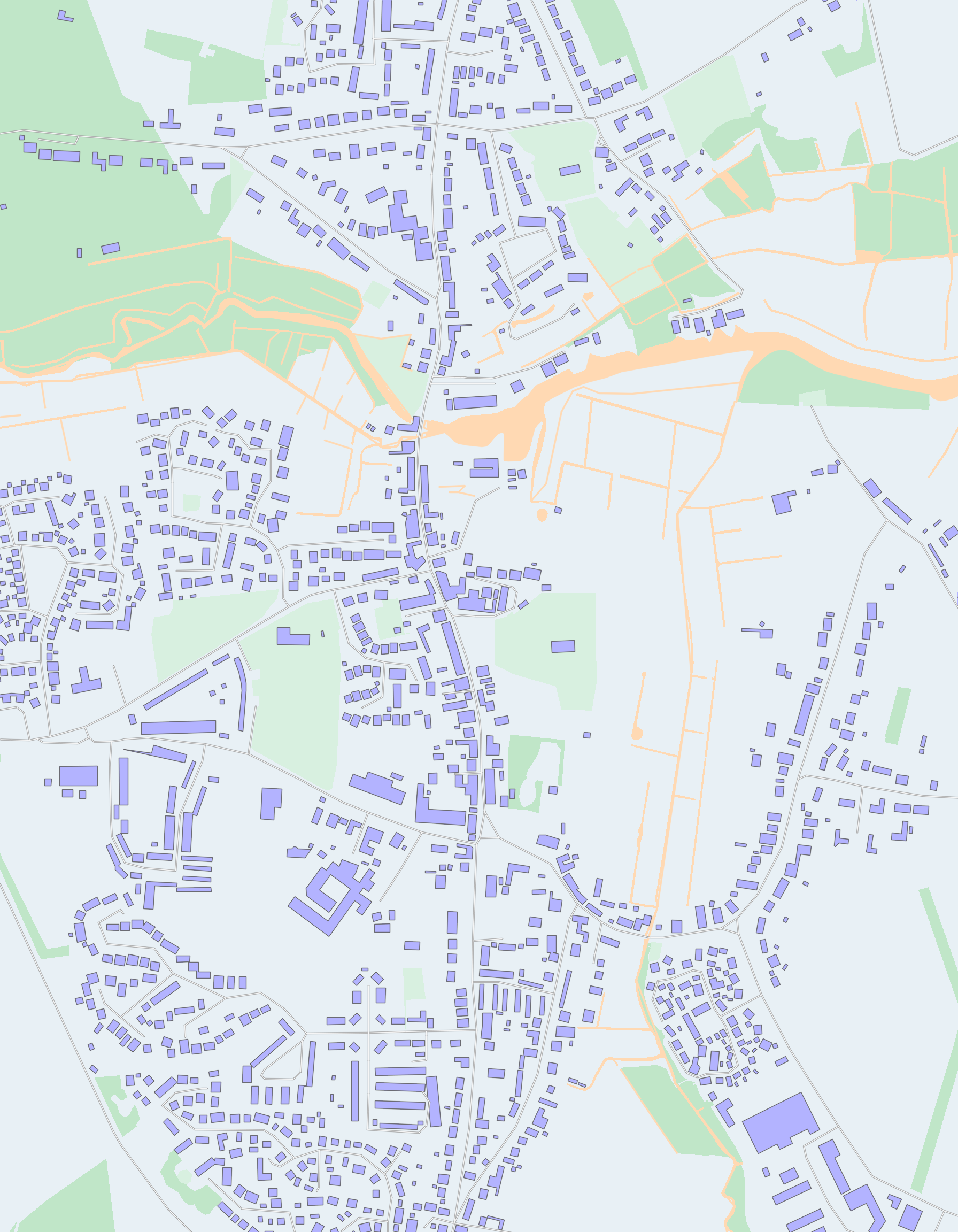

OS Open Zoomstack tile canvas (z17, 7×9 tiles ≈ 1.3×1.7 km)
OS Open Zoomstack tile canvas around Loddon
window0 / 0
zoom—
n_inliers0
best so far0
How the map is matched

Locate gave a rough area; this step finds exactly where the planning map sits on the ground. MINIMA-LoFTR looks for the same distinctive features — road junctions, field edges, building corners — in both the planning map and the Ordnance Survey basemap, and slides the map across the basemap one step at a time. The number on each window is how many of those feature matches actually line up (its inliers): more is better, and the strongest window wins, shown in gold — that alignment is what lets the boundary be read off in real-world coordinates.

This is a simplified picture: in the full pipeline the matcher searches over several zoom levels and re-ranks the strongest candidates with additional metrics before committing to one. See the paper for the full details.

Results

On all 208 cases of Plan2Map, GeoPlanAgent reaches 0.736 mean IoU and 0.904 median IoU, with 67.8% of cases at IoU ≥ 0.8. Median centroid error is 4.6 m and Acc@0.1D reaches 78.8%. Direct VLM-to-GeoJSON baselines are substantially weaker.

0.904
Median IoU
67.8%
IoU ≥ 0.8
4.6 m
Centroid Error
78.8%
Acc@0.1D

Main results (full 208-case benchmark)

Method %IoU>0 ↑ Mean IoU ↑ Med IoU ↑ %IoU≥0.8 ↑ Err (m) ↓ Acc@0.1D ↑ $/doc ↓
Gemini-3.1-Pro (VLM end-to-end) 40.4% 0.108 0.000 1.4% 480 9.6% 0.106
GeoPlanAgent (ours) 89.4% 0.736 0.904 67.8% 4.6 78.8% 0.043
GeoPlanAgent + Critic 89.9% 0.740 0.906 67.8% 4.6 78.8% 0.045

Component ablations show that (i) direct VLM-to-GeoJSON prediction remains unreliable, (ii) supervised LoRA fine-tuning of SAM 3 lifts boundary segmentation by ≥ 0.30 pixel IoU over the vanilla baseline, and (iii) sliding-window map registration tightens median centroid error from 176 m to 5 m — a 38× improvement over the Locate stage alone.

BibTeX

@misc{Plan2Map2026,
      title={Plan2Map: A Multimodal Benchmark for Document-Grounded Geospatial Boundary Reconstruction from Planning Records},
      author={Fabian Degen and Oishi Deb and Jindong Gu and Junchi Yu and Samuele Marro and Philip Torr and Jialin Yu},
      year={2026},
      eprint={2606.02747},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2606.02747},
}
